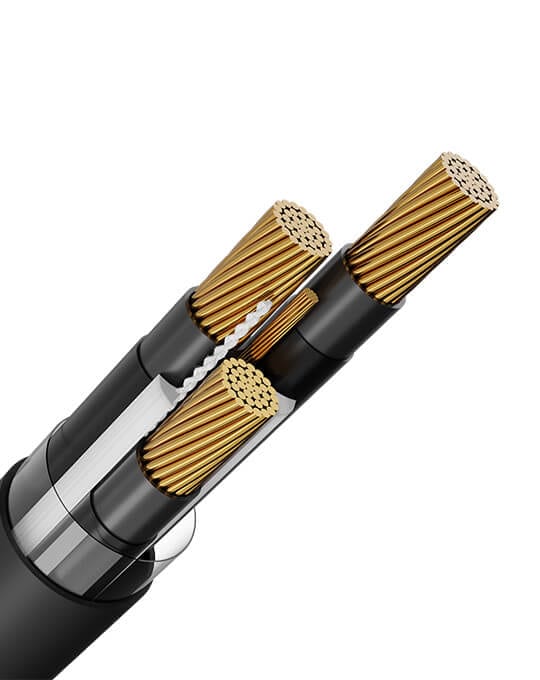

Tray Cable 8 AWG & Larger
R7267D
Type TC-ER Control Cable is intended for use in accordance with Article 336 of ANSI/NFPA 70 National Electrical Code. It is suitable for use in wire ways, trays, channels, conduit and ducts. It is UL Listed for direct burial in wet or dry locations, sunlight resistant and available as Exposed run (ER) for use between cable trays and utilization equipment in accordance with NEC 336.10 (7).
Standards & Specifications
- 8 AWG thru 500MCM soft annealed, bare copper per ASTM B3 & ASTM-B787
- UL 83
- Flame retardant insulation
- PVC Rated for use at 90º C dry
- PVC Rated for use at 75º C wet
- Gasoline & Oil Resistant II
- Color coded per method ICEA Method M4 with printed numbers
- Finished cable meets specification UL 1277
- ARRA 2009 Section 1605 “Buy American” Compliant
Wire Size & Specs
| Conductor | ||||||
|---|---|---|---|---|---|---|
| Size (AWG) | Stranding | No. of Conductors | Ground Size | Jacket Thickness PVC (Inches) |
Nom. OD (Inches) | Approx Net WT./MFT |
Conductor Size (AWG) 8 |
Stranding 19 |
No. of Conductors 3 | Ground Size 10 | Jacket Thickness PVC (Inches) 0.060 |
Nom. OD (Inches) 0.570 |
Approx Net WT./MFT 288 |
Conductor Size (AWG) 8 |
Stranding 19 |
No. of Conductors 4 | Ground Size 10 | Jacket Thickness PVC (Inches) 0.060 |
Nom. OD (Inches) 0.660 |
Approx Net WT./MFT 385 |
Conductor Size (AWG) 6 |
Stranding 19 |
No. of Conductors 3 | Ground Size 8 | Jacket Thickness PVC (Inches) 0.060 |
Nom. OD (Inches) 0.610 |
Approx Net WT./MFT 415 |
Conductor Size (AWG) 6 |
Stranding 19 |
No. of Conductors 4 | Ground Size 8 | Jacket Thickness PVC (Inches) 0.060 |
Nom. OD (Inches) 0.670 |
Approx Net WT./MFT 549 |
Conductor Size (AWG) 4 |
Stranding 19 |
No. of Conductors 3 | Ground Size 8 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 0.780 |
Approx Net WT./MFT 650 |
Conductor Size (AWG) 4 |
Stranding 19 |
No. of Conductors 4 | Ground Size 8 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 0.950 |
Approx Net WT./MFT 806 |
Conductor Size (AWG) 2 |
Stranding 19 |
No. of Conductors 3 | Ground Size 6 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 0.910 |
Approx Net WT./MFT 957 |
Conductor Size (AWG) 2 |
Stranding 19 |
No. of Conductors 4 | Ground Size 6 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 1.050 |
Approx Net WT./MFT 1195 |
Conductor Size (AWG) 1 |
Stranding 19 |
No. of Conductors 3 | Ground Size 6 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 1.210 |
Approx Net WT./MFT 1395 |
Conductor Size (AWG) 1/0 |
Stranding 19 |
No. of Conductors 3 | Ground Size 6 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 1.280 |
Approx Net WT./MFT 1447 |
Conductor Size (AWG) 2/0 |
Stranding 19 |
No. of Conductors 3 | Ground Size 6 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 1.350 |
Approx Net WT./MFT 1737 |
Conductor Size (AWG) 3/0 |
Stranding 19 |
No. of Conductors 3 | Ground Size 4 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 1.410 |
Approx Net WT./MFT 2200 |
Conductor Size (AWG) 4/0 |
Stranding 19 |
No. of Conductors 3 | Ground Size 4 | Jacket Thickness PVC (Inches) 0.080 |
Nom. OD (Inches) 1.580 |
Approx Net WT./MFT 2595 |
Conductor Size (AWG) 250 |
Stranding 37 |
No. of Conductors 3 | Ground Size 4 | Jacket Thickness PVC (Inches) 0.110 |
Nom. OD (Inches) 1.750 |
Approx Net WT./MFT 3039 |
Conductor Size (AWG) 350 |
Stranding 37 |
No. of Conductors 3 | Ground Size 3 | Jacket Thickness PVC (Inches) 0.110 |
Nom. OD (Inches) 2.150 |
Approx Net WT./MFT 3698 |
Conductor Size (AWG) 500 |
Stranding 37 |
No. of Conductors 3 | Ground Size 2 | Jacket Thickness PVC (Inches) 0.110 |
Nom. OD (Inches) 2.230 |
Approx Net WT./MFT 5678 |
Custom Options
Cutting
Get the precise cuts your customers need.
Available on select sizes.
