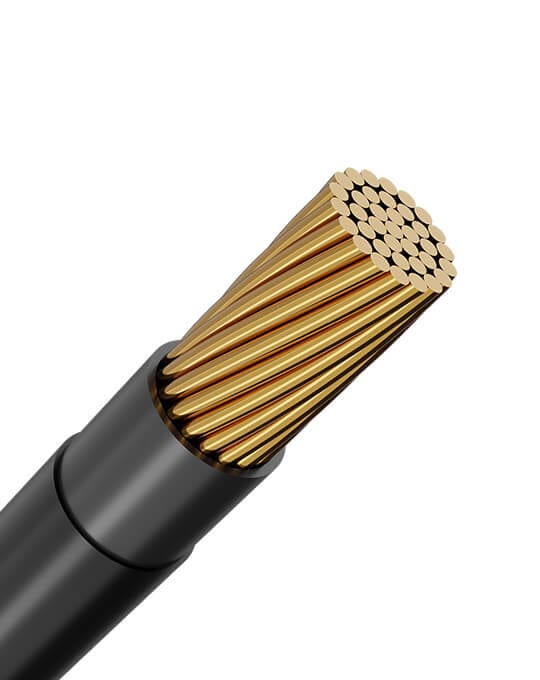

THHN
R7316
Type THHN or THWN-2 conductors are primarily used in conduit as branch circuits in commercial or industrial applications, as specified by the National Electric Code. Type AWM or MTW conductors are primarily used as appliance or machine tool wiring, as specified by the National Electric Code. Type THHN or THWN-2 are available stranded in sizes 14 awg - 750 kcmiL, and as solid in sizes 14-10 awg. Stranded sizes 14 awg - 750 kcmiL are also rated as AWM or MTW. The conductors are soft-annealed, stranded or solid copper and are insulated with a tough heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polymide) jacket is applied. Sizes #4 – 750MCM made with friction reducing nylon jacket to aid in the installation process.
Standards & Specifications
- 600V Rated
- UL 83, 1063, 758; Sunlight Resistant; VW-1 Rated
- Cable Tray Use 1/0 & Larger
- NEMA Publication No. WC70; Gasoline & Oil Resistant I
- c(UL) On All Sizes
- ARRA 2009 Section 1605 "Buy American" Compliant
- Available in low and high voltage colors
Wire Size & Specs
| Conductor | Ampacity* | |||||||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Stranding | Insulation Thickness (Inches) |
Nylon Jacket | Nom. OD (Inches) | 90° C | Approx Net WT./MFT | Standard Packaging Options (ft) |
Color Options |
Conductor Size (AWG) 14 |
Stranding Solid |
Insulation Thickness (Inches) 0.015 |
Nylon Jacket 4 |
Nom. OD (Inches) 0.102 |
Ampacity* 90° C 15 |
Approx Net WT./MFT 16 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 12 |
Stranding Solid |
Insulation Thickness (Inches) 0.015 |
Nylon Jacket 4 |
Nom. OD (Inches) 0.119 |
Ampacity* 90° C 20 |
Approx Net WT./MFT 24 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 10 |
Stranding Solid |
Insulation Thickness (Inches) 0.020 |
Nylon Jacket 4 |
Nom. OD (Inches) 0.150 |
Ampacity* 90° C 30 |
Approx Net WT./MFT 37 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 14 |
Stranding 19 |
Insulation Thickness (Inches) 0.015 |
Nylon Jacket 4 |
Nom. OD (Inches) 0.112 |
Ampacity* 90° C 15 |
Approx Net WT./MFT 16 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 12 |
Stranding 19 |
Insulation Thickness (Inches) 0.015 |
Nylon Jacket 4 |
Nom. OD (Inches) 0.131 |
Ampacity* 90° C 20 |
Approx Net WT./MFT 24 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 10 |
Stranding 19 |
Insulation Thickness (Inches) 0.020 |
Nylon Jacket 4 |
Nom. OD (Inches) 0.165 |
Ampacity* 90° C 30 |
Approx Net WT./MFT 37 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 8 |
Stranding 19 |
Insulation Thickness (Inches) 0.030 |
Nylon Jacket 5 |
Nom. OD (Inches) 0.218 |
Ampacity* 90° C 55 |
Approx Net WT./MFT 64 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' 10,000' Reels | Color Options |
Conductor Size (AWG) 6 |
Stranding 19 |
Insulation Thickness (Inches) 0.030 |
Nylon Jacket 5 |
Nom. OD (Inches) 0.256 |
Ampacity* 90° C 75 |
Approx Net WT./MFT 96 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' 10,000' Reels | Color Options |
Conductor Size (AWG) 4 |
Stranding 19 |
Insulation Thickness (Inches) 0.040 |
Nylon Jacket 6 |
Nom. OD (Inches) 0.325 |
Ampacity* 90° C 95 |
Approx Net WT./MFT 155 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' 10,000' Reels | Color Options |
Conductor Size (AWG) 3 |
Stranding 19 |
Insulation Thickness (Inches) 0.040 |
Nylon Jacket 6 |
Nom. OD (Inches) 0.388 |
Ampacity* 90° C 130 |
Approx Net WT./MFT 235 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' 10,000' Reels | Color Options |
Conductor Size (AWG) 2 |
Stranding 19 |
Insulation Thickness (Inches) 0.040 |
Nylon Jacket 6 |
Nom. OD (Inches) 0.388 |
Ampacity* 90° C 130 |
Approx Net WT./MFT 235 |
Standard Packaging Options (ft) 2000' Carton (4 x 500'), 1000' 2500' 5000' 10,000' Reels | Color Options |
Conductor Size (AWG) 1 |
Stranding 19 |
Insulation Thickness (Inches) 0.050 |
Nylon Jacket 7 |
Nom. OD (Inches) 0.437 |
Ampacity* 90° C 150 |
Approx Net WT./MFT 300 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 1/0 |
Stranding 19 |
Insulation Thickness (Inches) 0.050 |
Nylon Jacket 7 |
Nom. OD (Inches) 0.477 |
Ampacity* 90° C 170 |
Approx Net WT./MFT 370 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 2/0 |
Stranding 19 |
Insulation Thickness (Inches) 0.050 |
Nylon Jacket 7 |
Nom. OD (Inches) 0.521 |
Ampacity* 90° C 195 |
Approx Net WT./MFT 465 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 3/0 |
Stranding 19 |
Insulation Thickness (Inches) 0.050 |
Nylon Jacket 7 |
Nom. OD (Inches) 0.521 |
Ampacity* 90° C 225 |
Approx Net WT./MFT 570 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 4/0 |
Stranding 19 |
Insulation Thickness (Inches) 0.050 |
Nylon Jacket 7 |
Nom. OD (Inches) 0.627 |
Ampacity* 90° C 260 |
Approx Net WT./MFT 720 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 250 |
Stranding 37 |
Insulation Thickness (Inches) 0.060 |
Nylon Jacket 8 |
Nom. OD (Inches) 0.711 |
Ampacity* 90° C 290 |
Approx Net WT./MFT 850 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 300 |
Stranding 37 |
Insulation Thickness (Inches) 0.060 |
Nylon Jacket 8 |
Nom. OD (Inches) 0.766 |
Ampacity* 90° C 320 |
Approx Net WT./MFT 1011 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 350 |
Stranding 37 |
Insulation Thickness (Inches) 0.060 |
Nylon Jacket 8 |
Nom. OD (Inches) 0.817 |
Ampacity* 90° C 350 |
Approx Net WT./MFT 1172 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 400 |
Stranding 37 |
Insulation Thickness (Inches) 0.060 |
Nylon Jacket 8 |
Nom. OD (Inches) 0.864 |
Ampacity* 90° C 380 |
Approx Net WT./MFT 1333 |
Standard Packaging Options (ft) 500' 1000' 2500' 5000' Reels | Color Options |
Conductor Size (AWG) 500 |
Stranding 37 |
Insulation Thickness (Inches) 0.060 |
Nylon Jacket 8 |
Nom. OD (Inches) 0.949 |
Ampacity* 90° C 430 |
Approx Net WT./MFT 1653 |
Standard Packaging Options (ft) 500' 1000' 2000' 2500' Reels | Color Options |
Conductor Size (AWG) 600 |
Stranding 61 |
Insulation Thickness (Inches) 0.070 |
Nylon Jacket 9 |
Nom. OD (Inches) 1.051 |
Ampacity* 90° C 475 |
Approx Net WT./MFT 1985 |
Standard Packaging Options (ft) 500' 1000' 2000' Reels | Color Options |
Conductor Size (AWG) 750 |
Stranding 61 |
Insulation Thickness (Inches) 0.070 |
Nylon Jacket 9 |
Nom. OD (Inches) 1.126 |
Ampacity* 90° C 535 |
Approx Net WT./MFT 2462 |
Standard Packaging Options (ft) 500' 1000' 2000' Reels | Color Options |
| *Allowable ampacity shown above is per National Electrical Code. The above data is approximate and subject to normal manufacturing tolerances. | ||||||||
