Round Heavy Duty
TYPE – THW, sequentially marked, UL Standard 83. 10 AWG and 12 AWG are dual rated for submersible and direct burial. Maximum conductor operating temperatures of –25 C to 75 C in circuits not exceeding 600 volts and is sunlight resistant.

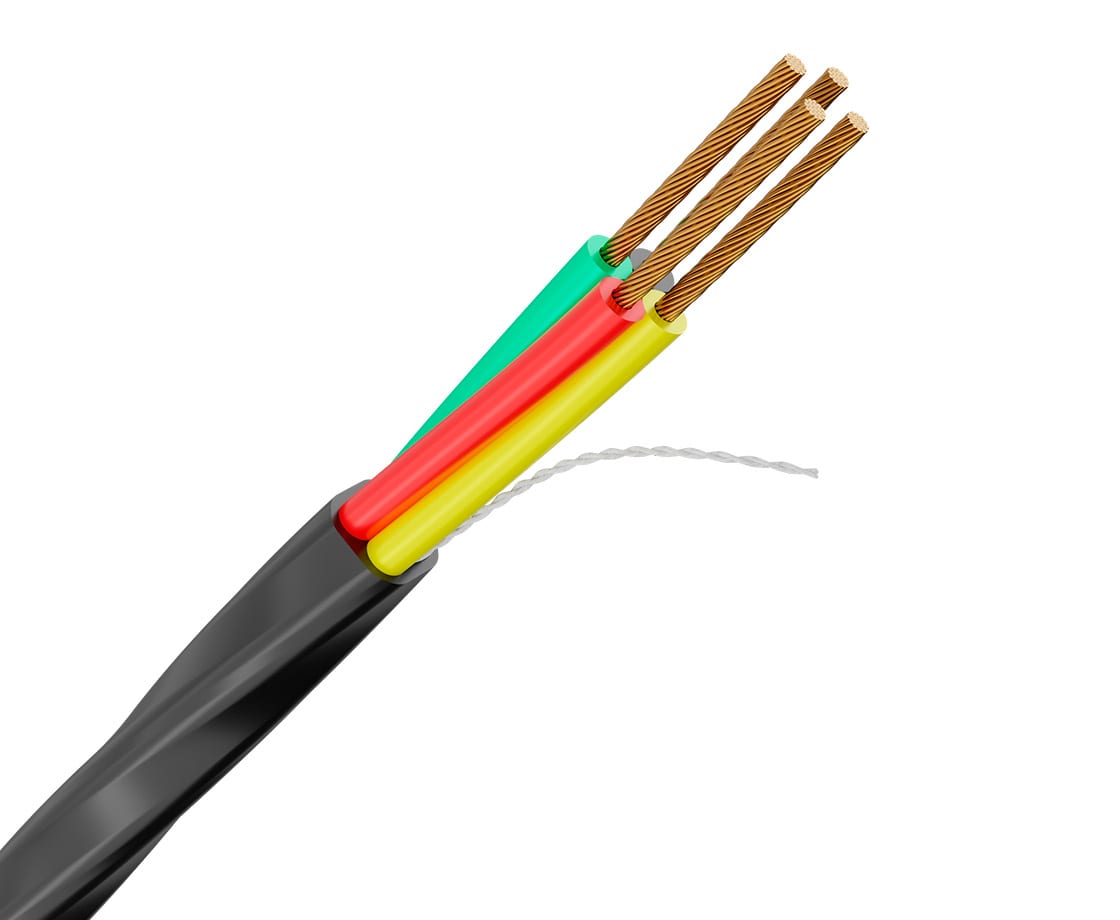

Construction
- Conductor: Stranded soft annealed copper (ASTM Spec. B-3). Stranded (12 awg thru 1/0)
- Insulation: Thermoplastic polyvinyl chloride (PVC)
- Color Coding: black, red, yellow, green (ground)
- Assembly: Insulated conductors, including the ground conductor, are twisted
- Jacket: Black thermoplastic polyvinyl chloride (PVC) extruded over the twisted conductors
- Temperature: 75º C
- Voltage: 600 Volts
| Conductor | Reels | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Stranding | Number of Conductors | Grounding | Part Number | Approx. Ship Wt./MFT | Insulation Inner Thickness (Inches) |
Jacket Thickness (PVC) | Outside Dimensions (Inches) | 500' | 1000' | Color Options |
Conductor Size (AWG) 12 |
Stranding 19 |
Number of Conductors 3 |
Grounding #12 |
Part Number PCR12/3G |
Approx. Ship Wt./MFT 201 |
Insulation Inner Thickness (Inches) 0.045 |
Jacket Thickness (PVC) 0.045 |
Outside Dimensions (Inches) 0.045 |
Reels 500' RW15 |
1000' RW24 | Color Options |
Conductor Size (AWG) 10 |
Stranding 19 |
Number of Conductors 3 |
Grounding #10 |
Part Number PCR10/3G |
Approx. Ship Wt./MFT 266 |
Insulation Inner Thickness (Inches) 0.060 |
Jacket Thickness (PVC) 0.045 |
Outside Dimensions (Inches) 0.610 |
Reels 500' RW23 |
1000' RW24 | Color Options |
Conductor Size (AWG) 8 |
Stranding 19 |
Number of Conductors 3 |
Grounding #10 |
Part Number PCR08/3G |
Approx. Ship Wt./MFT 377 |
Insulation Inner Thickness (Inches) 0.045 |
Jacket Thickness (PVC) 0.060 |
Outside Dimensions (Inches) 0.725 |
Reels 500' RW24 |
1000' RW30 | Color Options |
Conductor Size (AWG) 6 |
Stranding 19 |
Number of Conductors 3 |
Grounding #8 |
Part Number PCR06/3G |
Approx. Ship Wt./MFT 576 |
Insulation Inner Thickness (Inches) 0.045 |
Jacket Thickness (PVC) 0.060 |
Outside Dimensions (Inches) 0.812 |
Reels 500' RW30 |
1000' RW32 | Color Options |
Conductor Size (AWG) 4 |
Stranding 19 |
Number of Conductors 3 |
Grounding #8 |
Part Number PCR04/3G |
Approx. Ship Wt./MFT 756 |
Insulation Inner Thickness (Inches) 0.060 |
Jacket Thickness (PVC) 0.060 |
Outside Dimensions (Inches) 0.955 |
Reels 500' RW30 |
1000' RW37 | Color Options |
Conductor Size (AWG) 2 |
Stranding 19 |
Number of Conductors 3 |
Grounding #6 |
Part Number PCR02/3G |
Approx. Ship Wt./MFT 1120 |
Insulation Inner Thickness (Inches) 0.060 |
Jacket Thickness (PVC) 0.060 |
Outside Dimensions (Inches) 1.100 |
Reels 500' RW32 |
1000' RW40 | Color Options |
Conductor Size (AWG) 1/0 |
Stranding 19 |
Number of Conductors 3 |
Grounding #6 |
Part Number PCR1A/3G |
Approx. Ship Wt./MFT 1445 |
Insulation Inner Thickness (Inches) 0.060 |
Jacket Thickness (PVC) 0.060 |
Outside Dimensions (Inches) 1.241 |
Reels 500' RW32 |
1000' RW40 | Color Options |
Custom Options
Cutting
Get the precise cuts your customers need.
Available on select sizes.
